Total pulverised fuel (PF) related costs provide
the means to directly compare alternative coals. These costs are
directly comparable in that the cost calculated for each coal
represents equal level of saleable generation. The components of
the fuel related costs calculated for an existing plant are as
follows.
-
Annual fuel costs - consist of the FOB mine
fuel cost and fuel transportation cost.
-
Maintenance costs- associated with maintenance of the
steam generator system, air heaters, fuel preparation and firing
system, primary air fans, forced draft fans, induced draft fans,
particulate removal system, fly ash system, bottom ash system, FGD
additive preparation system, FGD system, waste conditioning system,
and coal handling system.
-
Plant operating costs - consist of scrubber additive
costs, fixative costs, and waste disposal costs.
-
Replacement power costs - due to unit derates,
unavailability and changes in auxiliary power requirements.
For further details on the impact of coal quality
on power costs see Conroy
& Bennett
|
|
The theoretically achievable maximum efficiency
of thermal power generation is limited by a simple relation based
only on the lowest and the highest temperature of the cycle.This
equation is well known as Carnot’s Law.
The higher steam temperatures of Super-Critical
(540°C to 600°C)& Ultra-Super Critical (650°C to
720°C) boilers allows these boilers to obtain higher
efficiencies than conventional boilers. Material suitable for
the steam tubes at temperatures of super-critical are now widely
available and these boilers are now being built. Research
into suitable materials for ultra-super-critical boilers is
currently been done in China, Europe, Japan and USA.
|
|
Three different types of pulverised fuel-firing
systems are used in large boilers:
-
Horizontal or slightly angled swirl burners located in the front
and/or rear walls of the furnace. In a swirl burner the air,
normally secondary air, is given a strong swirl about the axis of
the burner. The swirling action increases the mixing of combustion
gases, air and fuel and produces a short intense flame.
-
Tangential corner-fired burners introduce the fuel and primary air
at a tangent to an imaginary circle in the centre of the combustion
chamber. They produce a long low intensity flame that swirls about
a vertical axis.
-
Vertical or downshot firing burners are located in the roof of the
combustion chamber with the flame projected downwards into the
combustion chamber. This firing method is normally used for
anthracite.
|
|
In a PF boiler system, coal is pulverised to
typically 70–75%, passing 75 micron and entrained in
preheated primary air for conveying to the burners. In some
small-scale operations indirect firingis used, this is when the
pulverised coal is stored in a bin before feeding to the
burners. Normally, Hardgrove Grindability Index (HGI) is used
to predict mill
performance.
The three types of coal pulveriser are generally
identified by the speed of their rotation:
- Low
speed mills are of the ball/tube design with a large steel cylinder
and a charge of hardened balls. Coal is ground as it is crushed and
abraded between the balls.
- Medium
speed pulverisers are typically vertical spindle mills that grind
the coal between rollers or balls and a bowl or race.
- High
speed mills have a high-speed rotor, which impacts on and breaks
the coal.
The table below shows the preferred coal
properties for each type of pulveriser.
Pulveriser
Type
|
Low
speed
|
Medium
speed
|
High
speed
|
Example
|
Tube
mill
|
Vertical
spindle
mill
|
Impact
mill
|
Coal feed top
size
|
mm
|
25
|
40
|
32
|
Coal moisture
|
(as) %
|
0–10
|
0–20
|
0–25
|
Coal ash
|
(as) %
|
1–50
|
1–30
|
1–15
|
Coal quartz
content
|
(as) %
|
0–10
|
0–3
|
0–1
|
Hardgrove Grindability Index
|
|
30–50
80–100
|
40–60
|
60–100
|
Abrasion index
|
mg/kg
|
50–100
|
10–60
|
5–30
|

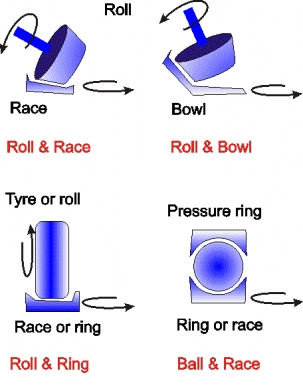

Vertical spindle mills are commonly used in
large-scale power plants and to pulverise coal for injection into
blast furnaces and can have different configurations as shown
below.
|
|
Conventional Low NOx burners
Low NOX burners are modified swirl burners that
create a fuel-rich combustion zone followed by a leaner burnout
zone. The degree of NOx reduction that can be achieved for a given
coal is limited by the requirement to produce a stable flame and
maintain adequate burnout.
Advanced Low NOx burners
These burners create a hot flame envelope around
the fuel rich zone near the burner outlet. This flame
envelope promotes the devolatilisation
of the coal which releases a greater amount of the coal
nitrogen within this fuel rich region leading to lower NOx

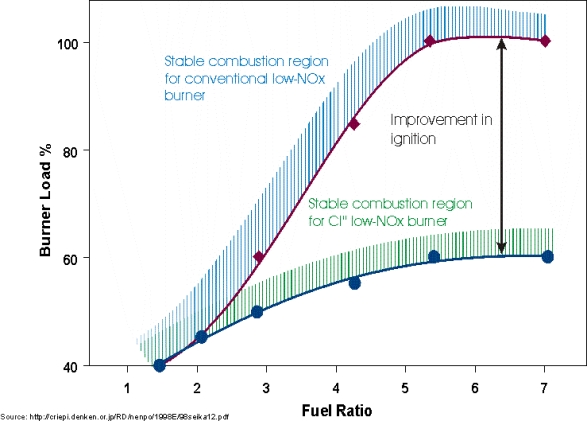

formation. As shown in the figure below these burners have improved
NOx reduction and better flame stability characteristics than the
conventional Low NOx burners. Examples of these burners are the
CRIEPI's
CI-αburnerand
Babcock & Wilcox (B&W)
DRB-4Z
burner.
|
|
|
|
